TA-153 is a low-frequency amplifier and was a prototype of the later produced 2N34.
RCA: Vintage Transistors / Diodes Collection
This site contains my collection of vintage transistors and diodes, most of them included with their original package or sleeves. The devices are produced in the late fifties and early sixties except the MOSFET's from Sony they where made in 1975. Enjoy the collectables and click on the picture links for more details. Suggestions regarding these transistors are welcome. I'm always looking for new semiconductor items to complete my collection, so if you would like to sell or exchange something, please contact me, jan@transparentsound.com.
| TA-153 | Type | : | TA-153, PNP Germanium Alloy Junction Transistor, TA stands for "Transistor Amplifier" (New) |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | 1952, serial no. A-2099 & A-2417 | |
| Package, Case style | : | TO-22var | |
| Spec's | : |
TA-153 is a low-frequency amplifier and was a prototype of the later produced 2N34. |
|
| Photo's | : | Picture1, Picture2, Picture3 |
| TA-165K | Type | : | TA-165K, PNP Germanium Point-Contact Transistor, TA stands for "Transistor Amplifier" (New) |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | March 1952, code 2834 | |
| Package, Case style | : | envelope, TO-22var | |
| Spec's | : |
HF type 5MHz; TA165K was the prototype of the later produced 2N32. |
|
| Photo's | : | Picture1, Picture2, Picture3 |
| 2N34 | Type | : | 2N34, PNP Germanium Alloy Junction Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | 4-09=September 1954, "The1954 Allied Radio catalog listed the RCA 2N34 for $13.40!!" | |
| Package, Case style | : | None, TO-22var | |
| Spec's | : |
Vcbo=-25V, Hfe=40, Ic=-8mA, P=50mW, TA153 was the developmental type of the 2N34 of RCA, all these transistors where build with transparent araldite epoxy combined with a plastic sealing. The price of the 2N34 was 13.40$ in 1953. |
|
| Photo's | : | Picture1, Picture2, Picture3 |

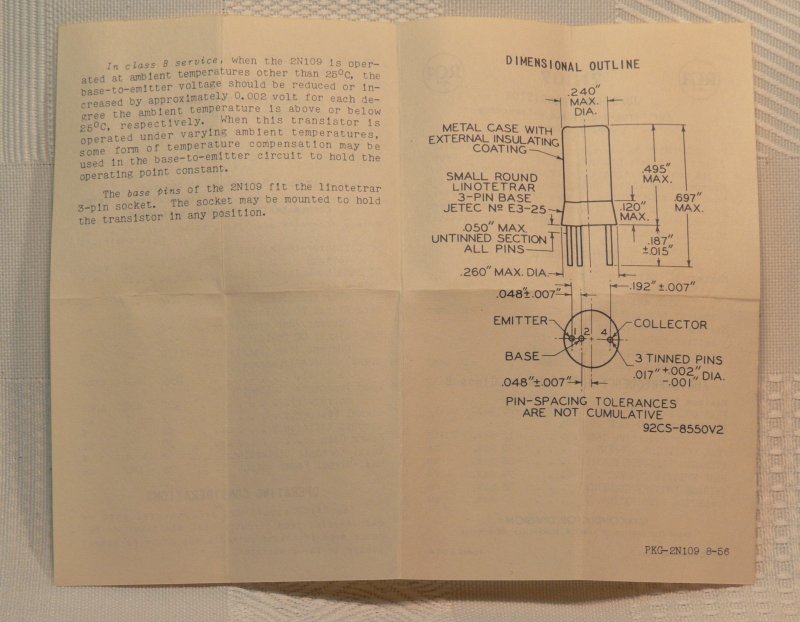

| 2N109-A | Type | : | 2N109, PNP Germanium Alloy Junction Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | 7D=April 1957, black version is the first 2N109 and introduced in 1955 | |
| Package, Case style | : | None, TO-40 Metal, black metal was first released | |
| Spec's | : | Vceo=-25V, Vcbo=-35V,Vebo=-12V, Hfe=65-115, Ic=-150mA, Icbo=7uA, P=165mW, Cobo=60pF | |
| Photo's | : | Picture1, Picture2 |
| 2N109-B | Type | : | 2N109, PNP Germanium Alloy Junction Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | Metal version introduced late 50s | |
| Package, Case style | : | Carton Envelope, TO-40 Metal, the TO-40 Black Metal was first released | |
| Spec's | : | Vceo=-25V, Vcbo=-35V,Vebo=-12V, Hfe=65-115, Ic=-150mA, Icbo=7uA, P=165mW, Cobo=60pF | |
| Photo's | : | Picture1, Picture2, Picture3, Picture4, Picture5, Picture6 |
| 2N109-C | Type | : | 2N109, PNP Germanium Alloy Junction Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | End 50s | |
| Package, Case style | : | Carton Sleeve, TO-40 Silver Metal (later version) | |
| Spec's | : | Vceo=-25V, Vcbo=-35V,Vebo=-12V, Hfe=65-115, Ic=-150mA, Icbo=7uA, P=165mW, Cobo=60pF | |
| Photo's | : | Picture1, Picture2, Picture3, Picture4, Picture5, |
| 2N109-D | Type | : | 2N109, PNP Germanium Alloy Junction Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | Early 60s | |
| Package, Case style | : | Carton Blister, TO-40 Silver Metal (later version) | |
| Spec's | : | Vceo=-25V, Vcbo=-35V,Vebo=-12V, Hfe=65-115, Ic=-150mA, Icbo=7uA, P=165mW, Cobo=60pF | |
| Photo's | : | Picture1, Picture2 |

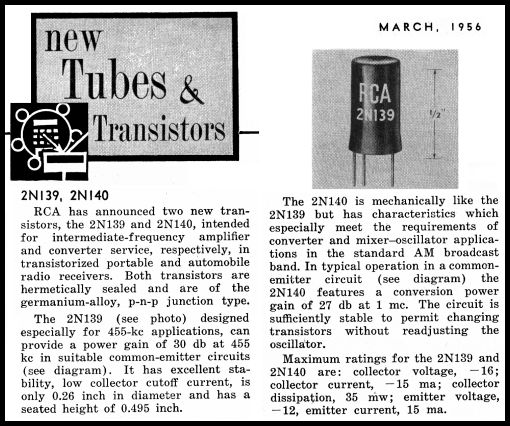

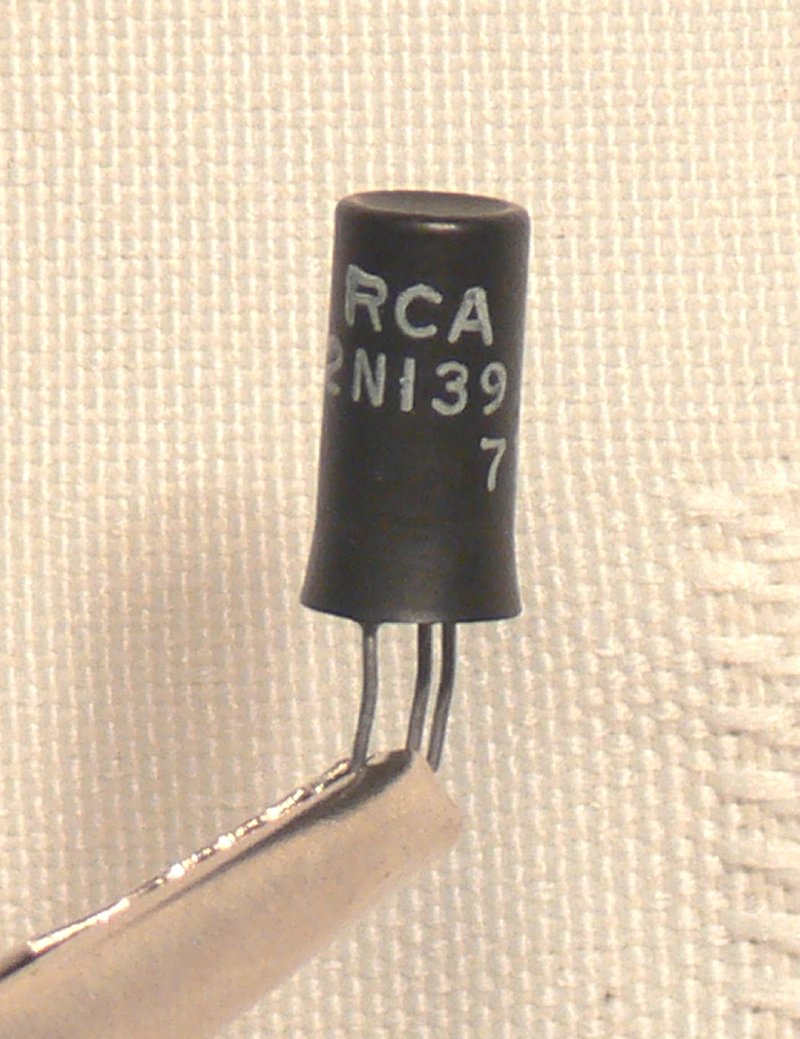

| 2N139 and 2N140 | Type | : | 2N139, PNP and 2N140 Germanium Alloy Junction Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | 2N139: 7D=April 1957, and 2N140: 7D=April 1957 | |
| Package, Case style | : | None, TO-40 Black Metal, commercial announcement | |
| Spec's | : |
2N139: Vcbo=-16V,Hfe=48, Ic=-15mA,
Icbo=10uA, P=35mW 2N140: Vcbo=-16V, Hfe=5, Ic=-15mA, Icbo=10uA, P=35mW, Cobo=9.5pF, ft=10MHz |
|
| Photo's | : | Picture1, Picture2, Picture3, Picture4, |

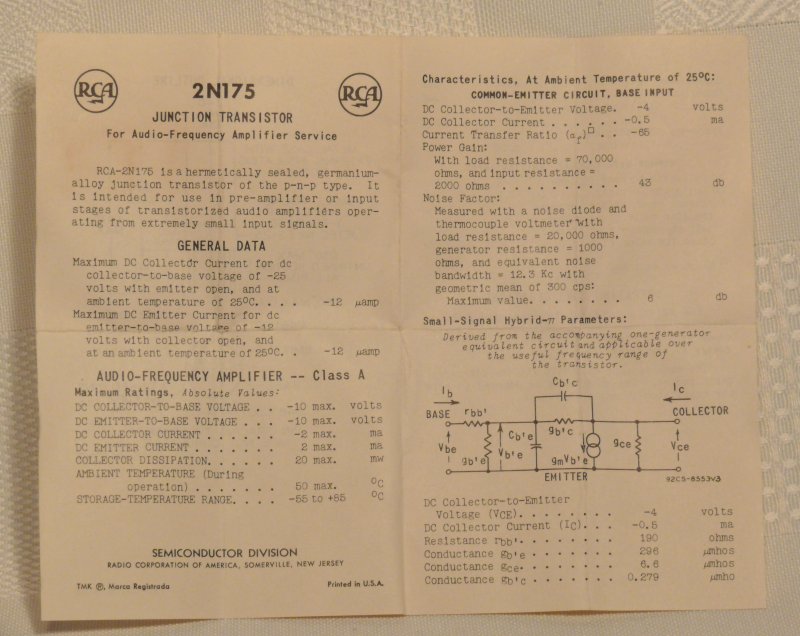

| 2N175 | Type | : | 2N175, PNP Germanium Alloy Junction Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | End fifties | |
| Package, Case style | : | None, TO-40 Metal | |
| Spec's | : | Vcbo=-10V, Hfe=75, Ic=-2mA, Icbo=12uA, P=20mW, Cobo=?pF, ft=850kHz | |
| Photo's | : | Picture1, Picture2, Picture3, Picture4, Picture5, (Donated by David Willenborg from the US) |
| 2N218 | Type | : | 2N218, PNP Germanium Low Power Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | ? | |
| Package, Case style | : | Carton Sleeve, TO-1 Silver Metal | |
| Spec's | : | Vcbo=-16V, Hfe=>48, Ic=-15mA, Icbo=10uA, P=35mW, ft=4.7MHz, Cobo=9.5pF | |
| Photo's | : | Picture1, Picture2, Picture3, Picture4, Picture5 |
| 2N247 | Type | : | 2N247, PNP Germanium PNP Alloy Junction Drift Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | 1957 | |
| Package, Case style | : | Carton Sleeve, TO-40 Silver Metal (later version) | |
| Spec's | : | Vcbo=-40V, Hfe=>75, Ic=-10mA, Icbo=16uA, P=80mW | |
| Photo's | : | Picture1, Picture2, Picture3, Picture4, (see also Sylvania 2N247) |
| 2N270 | Type | : | 2N270, PNP Germanium Low Power Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | ? | |
| Package, Case style | : | Blister, TO-45(3) | |
| Spec's | : | Vcbo=-25V, Hfe=>70, Ic=-75mA, Icbo=10uA, P=150mW | |
| Photo's | : | Picture1, Picture2 |

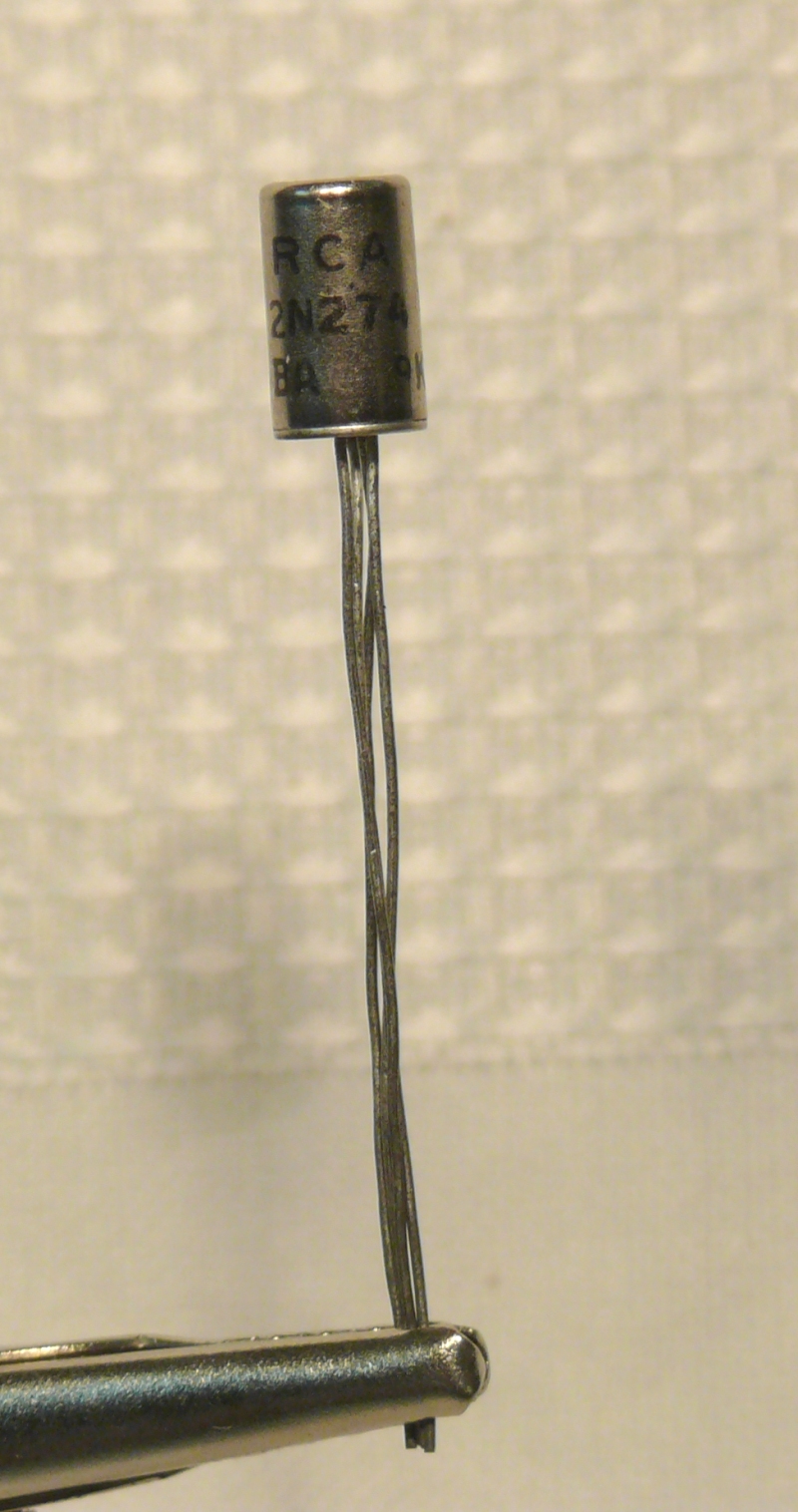

| 2N274 | Type | : | 2N274, PNP Germanium Low Power Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | ? | |
| Package, Case style | : | None, TO-44 | |
| Spec's | : | Vcbo=-40V, Vceo=-40V, Hfe=>20-175, Ic=-10mA, Icbo=12uA, P=80mW, ft=30MHz, Cobo=3pF, | |
| Photo's | : | Picture1, Picture2, (Donated by Gerard Duperray France) |
| 2N301 | Type | : | 2N301, PNP Germanium Power Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | End fifties, The prototypes of the 2N301 were the SX155A and the TA-1556. The 2N301 was the first commercially successfully Power Transistor of RCA. | |
| Package, Case style | : | Carton box, TO-3 Silver Metal (later version) | |
| Spec's | : | Vcbo=-40V, Vceo=-40V, Hfe=>70, Ic=-1.5A, Icbo=3mA, P=11W | |
| Photo's | : | Picture1, Picture2, Picture3, Picture4, Picture5 |
| 2N407 | Type | : | 2N407, PNP Germanium Low Power Transistor Linotetrar 3-Pin Base |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | 7L=December 1957 | |
| Package, Case style | : | Carton Sleeve, TO-40 black metal | |
| Spec's | : | Vceo=-18V, Vcbo=-20V, Hfe=>65, Ic=-70mA, Icbo=14uA, P=150mW | |
| Photo's | : | Picture1, Picture2, Picture3, Picture4 |
| 2N410 | Type | : | 2N410, PNP Germanium Low Power Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | 7L=December 1957 | |
| Package, Case style | : | Carton Sleeve, TO-1 | |
| Spec's | : | Vcbo=-13V, Hfe=>48, Ic=-15mA, Icbo=10uA, P=80mW, ft=6.8MHz, Cobo=9.5pF | |
| Photo's | : | Picture1, Picture2, Picture3, Picture4 |
| 2N647 | Type | : | 2N647, NPN Germanium Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | End fifties | |
| Package, Case style | : | Blister, TO-1 Silver Metal | |
| Spec's | : | Vceo=25V, Vcbo=25V, Hfe=>75, Ic=-50mA, Icbo=16uA, P=100mW, ft=35MHz | |
| Photo's | : | Picture1, Picture2 |
| 2N709 | Type | : | 2N709, NPN UHF Microwave Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | Mid sixties | |
| Package, Case style | : | ?, TO-18 Metal can | |
| Spec's | : | Vceo=6V, Vcbo=15V, Hfe=20-120, Ic=?mA, Icbo=50nA, P=300mW, ft=600MHz, Cobo=3pF | |
| Photo's | : | Picture1, Picture2, Picture3 |

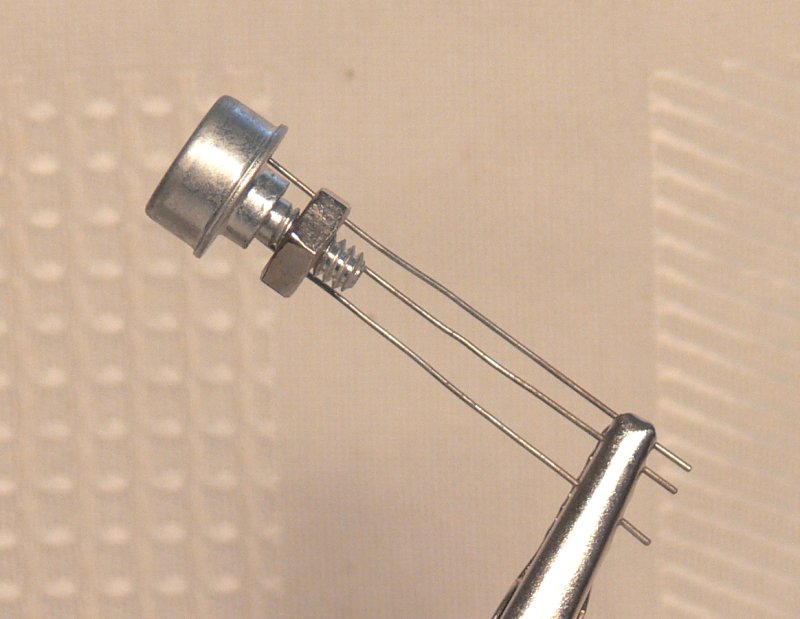

| 2N2339 | Type | : | 2N2339, Silicium NPN Medium Power Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | ? | |
| Package, Case style | : | Carton box, TO-57 | |
| Spec's | : | Vceo=40V, Vcbo=60V, Hfe=>20-80, Ic=2.5A, Icbo=3mA, P=40W, ft=700kHz, Cobo=300pF | |
| Photo's | : | Picture1, Picture2, Picture3 |
| 40235 | Type | : | 40235, Silicium NPN UHF-Microwave Transistor |
|
|
Manufacturer | : | RCA, "Radio Corporation of America" |
| Year | : | ? | |
| Package, Case style | : | Carton box with foam, TO-72 | |
| Spec's | : | Vceo=4`5V, Vcbo=450V, Hfe=>40, Ic=1mA, Icbo=1uA, P=180mW, ft=1GHz, Cobo=0.65pF | |
| Photo's | : | Picture1, Picture2, Picture3, Picture4 |
RCA 2N109 The Evolution:
The photo here below shows the 3 generations of one of the world famous transistor for that time. The oldest one, the 2N109 black version is now in my possession and the complete collection on photo will become soon.
 |
 |
